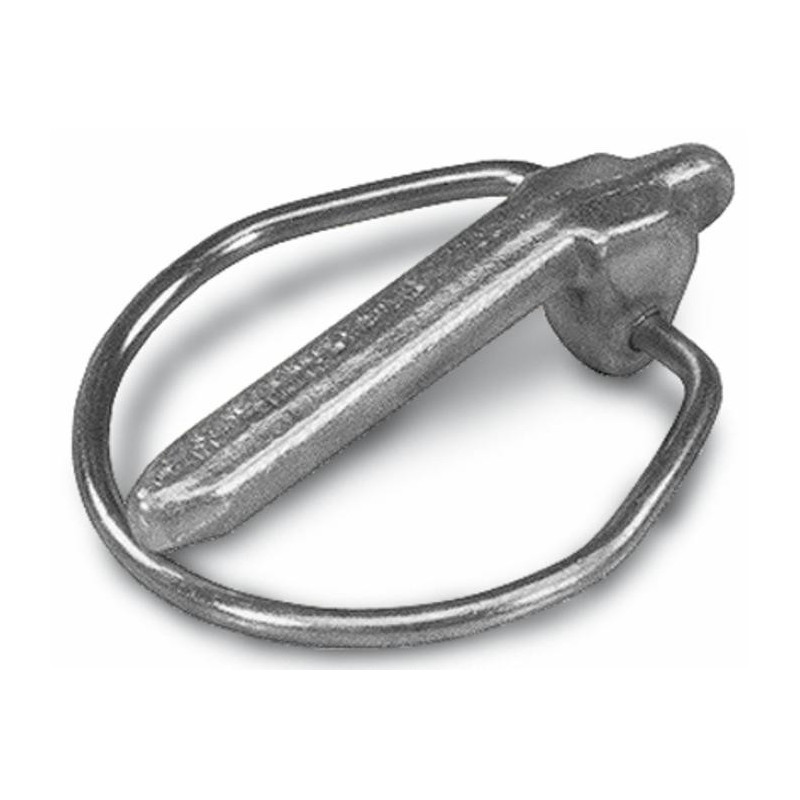

Forged linch pin 11 mm DIN11023

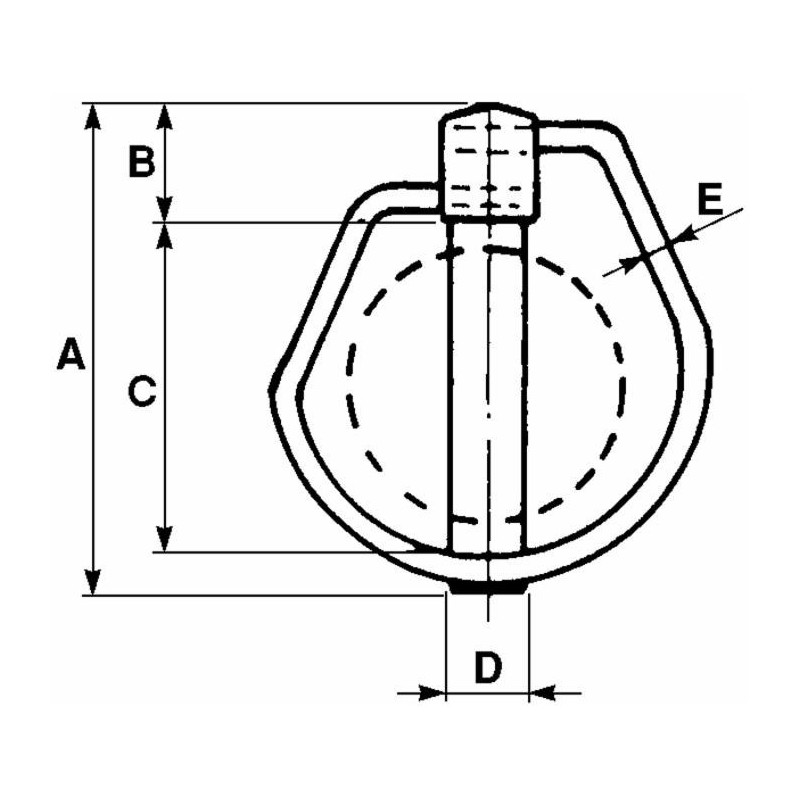

A-82 mm B -24 mm C - 48 mm D - 15 mm E - 4 mm
Quantity in the package 25pcs
Guarantee safe & secure checkout
Application Example: The core application is securing implements and machinery onto the three-point hitch of a tractor, as well as other quick-disconnect joints. They are also ideal for securing ball joints, where a reliable and quick fastening solution is required. Although linchpins themselves are often used in place of R-clips or cotter pins for general fastening, they provide a significantly faster, more convenient, and more secure locking solution for connection points, especially in field conditions.
Pin diameter (D): 5 mm.
Length (A): 48 mm.
Standard: DIN 11023.
Material: Galvanized steel.
Quantity per pack: 100 pcs.
