10mm linch pin with chain

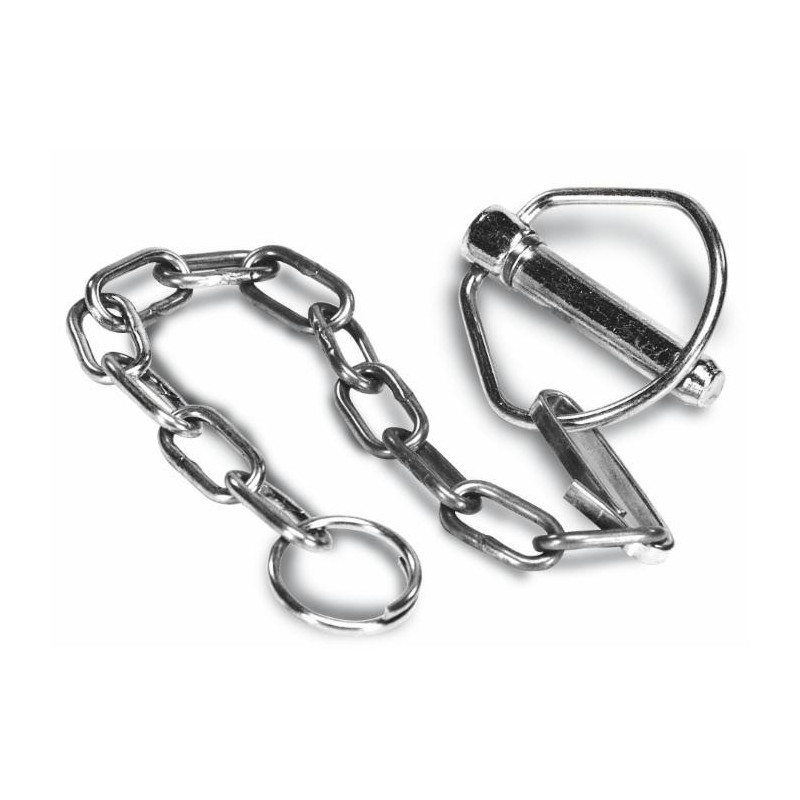

Linch Pin with Chain (10 mm)

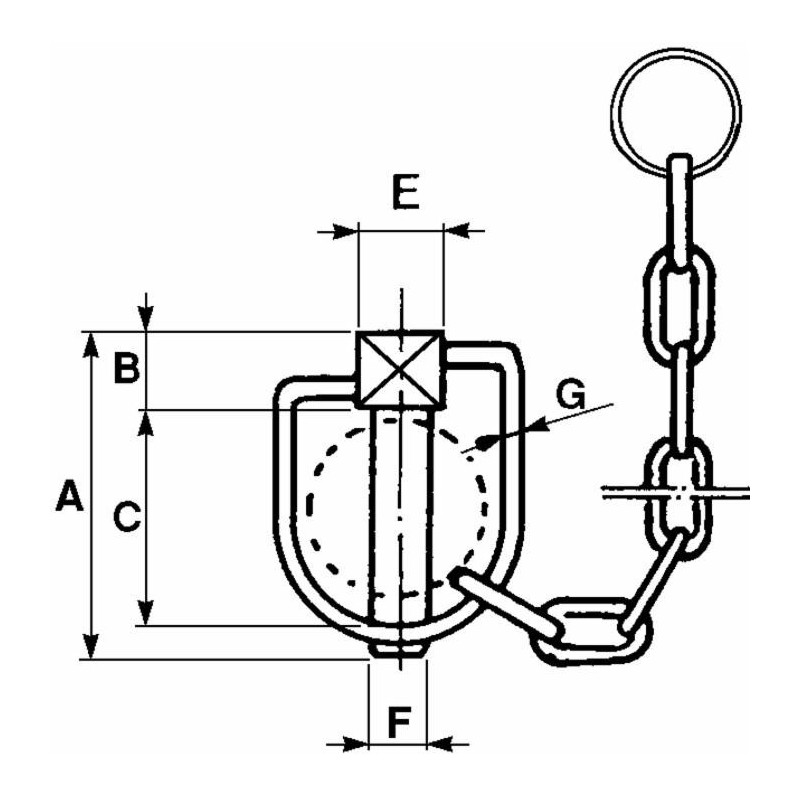

Pin Diameter (f): 10 mm

Shaft Diameter: 26–32 mm

Total Length (a): 57 mm

Clearance Width (b): 12 mm

Usable Length (c): 42 mm

Ring Diameter (d): 12 mm

Ring Wire Thickness (g): 3.5 mm

Product Code: 02165

Country of Origin: Italy
