Product Code: 02533
Country of Origin: Italy
Pipe Diameter (ø): 12 mm
Spanner size: 10
Length: 53 mm

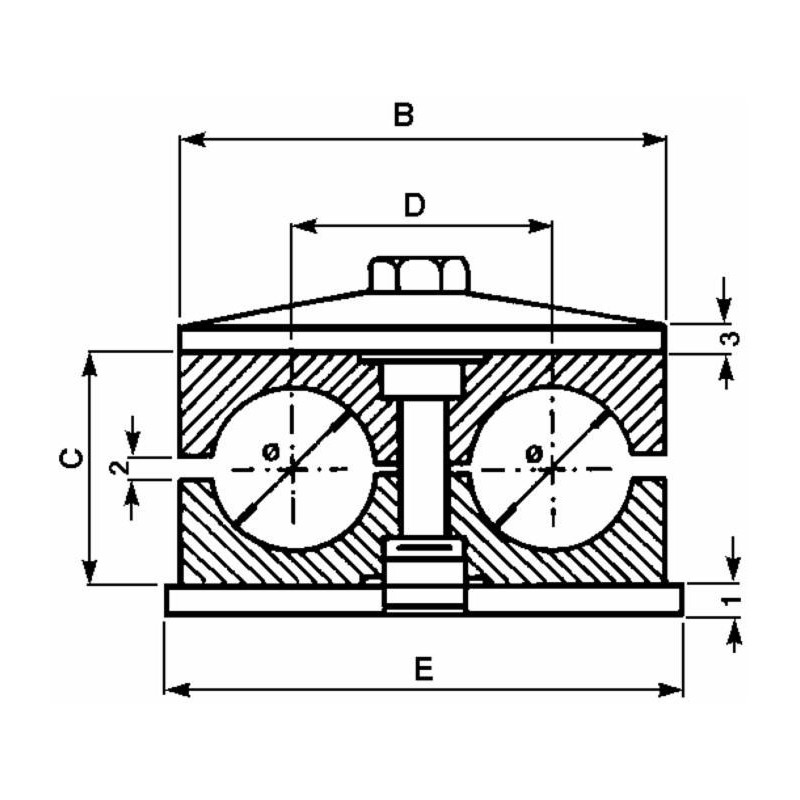

Dimension b: 30 mm
Dimension c: 37 mm
Dimension d: 36 mm
Dimension e: 44 mm
Components: Polypropylene clamp body, steel plates, hex bolt
English
English
Double Polypropylene Pipe Clamp ø 8 mm
€1.30
Tax included
Product Code: 02436
Country of Origin: Italy
Pipe Diameter (ø): 8 mm
Spanner size: 19
Length: 37 mm
Dimension b: 36 mm
Dimension c: 25 mm
Dimension d: 20 mm
Dimension e: 37 mm
Includes: Polypropylene clamp, plates, and hex screw
Guarantee safe & secure checkout

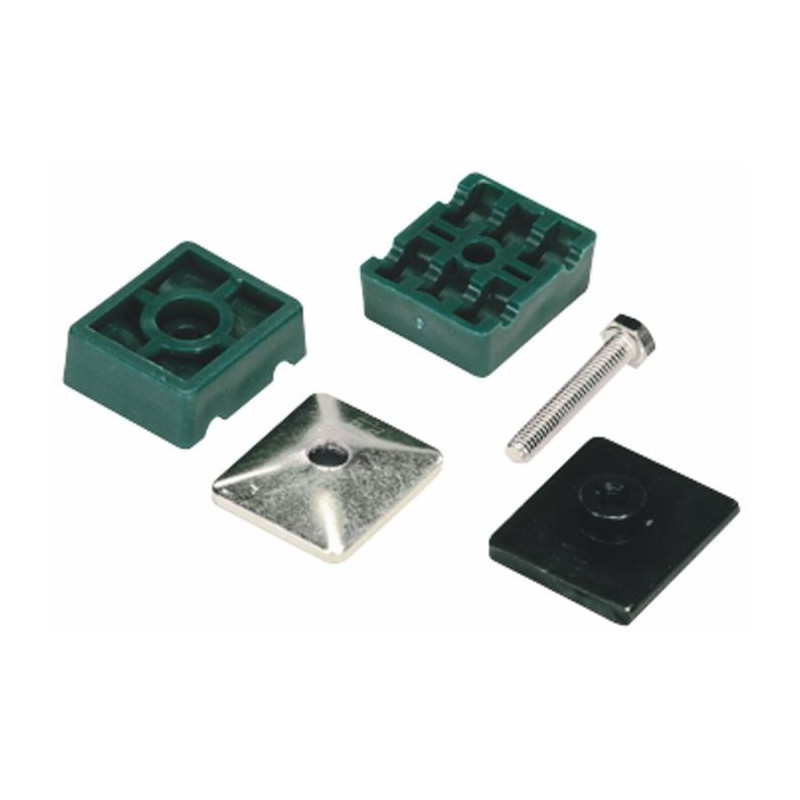

Double clamp in polypropylene Ø 8 with plates and hexagonal screw
Double clamp: Twin-pipe fastening.
Polypropylene: The material of the clamp body.
Plates: Base and cover plates (usually steel).
Hexagonal screw: Hex head bolt for tightening the assembly.
High-quality Ama double series pipe clamp, designed for the secure fastening of two parallel 8 mm diameter pipes or hoses. Manufactured in Italy, this kit includes a durable green polypropylene body, top and bottom metal plates, and a hexagonal bolt. It provides excellent mechanical stability and vibration damping for professional hydraulic layouts.
02436
New
11 other products in the same category:
Product Code: 02437
Country of Origin: Italy
Pipe Diameter (ø): 14 mm
Spanner size: 19
Length: 37 mm
Dimension b: 36 mm
Dimension c: 25 mm
Dimension d: 20 mm
Dimension e: 37 mm
Components: Polypropylene clamp body, steel plates, hex bolt
Product Code: 02535
Country of Origin: Italy
Pipe Diameter (ø): 22 mm
Spanner size: 30
Length: 70 mm
Dimension b: 67 mm
Dimension c: 37 mm
Dimension d: 36 mm
Dimension e: 70 mm
Material: Polypropylene (PP) and galvanized steel
Product Code: 02552
Country of Origin: Italy
Pipe Diameter (ø): 10 mm
Spanner size: 10
Length: 37 mm
Dimension b: 36 mm
Dimension c: 25 mm
Dimension d: 20 mm
Dimension e: 37 mm
Components: Polypropylene clamp body, steel plates, hex bolt
Product Code: 02553
Country of Origin: Italy
Pipe Diameter (ø): 15 mm
Spanner size: 10
Length: 37 mm
Dimension b: 36 mm
Dimension c: 25 mm
Dimension d: 20 mm
Dimension e: 37 mm
Components: Polypropylene clamp body, steel plates, hex bolt
Product Code: 02536
Country of Origin: Italy
Pipe Diameter (ø): 28 mm
Spanner size: 17
Length: 85 mm
Dimension b: 82 mm
Dimension c: 42 mm
Dimension d: 45 mm
Dimension e: 85 mm
Material: Polypropylene (PP) and galvanized steel
Product Code: 02555
Country of Origin: Italy
Pipe Diameter (ø): 20 mm
Spanner size: 22
Length: 70 mm
Dimension b: 67 mm
Dimension c: 37 mm
Dimension d: 36 mm
Dimension e: 70 mm
Material: Polypropylene (PP) and galvanized steel
- Double clamp in polypropylene Ø 6 with plates and hexagonal screw
-
Product Code: 02435
-
Country of Origin: Italy
-
Diameter (ø): 6 mm
-
Spanner size: 19
-
Length: 37 mm
-
Dimension b: 36 mm
-
Dimension c: 25 mm
-
Dimension d: 20 mm
-
Dimension e: 37 mm
-
Includes: Polypropylene body, plates, hexagonal bolt
Product Code: 02554
Country of Origin: Italy
Pipe Diameter (ø): 18 mm
Spanner size: 10
Length: 37 mm
Dimension b: 36 mm
Dimension c: 25 mm
Dimension d: 20 mm
Dimension e: 37 mm
Material: Polypropylene (PP) and galvanized steel
Product Code: 02534
Country of Origin: Italy
Pipe Diameter (ø): 16 mm
Spanner size: 17
Length: 55 mm
Dimension b: 53 mm
Dimension c: 26 mm
Dimension d: 29 mm
Dimension e: 55 mm
Components: Polypropylene clamp body, steel plates, hex bolt
Product Code: 02556
Country of Origin: Italy
Pipe Diameter (ø): 25 mm
Spanner size: 14
Length: 70 mm
Dimension b: 67 mm
Dimension c: 37 mm
Dimension d: 36 mm
Dimension e: 70 mm
Material: Polypropylene (PP) and galvanized steel
